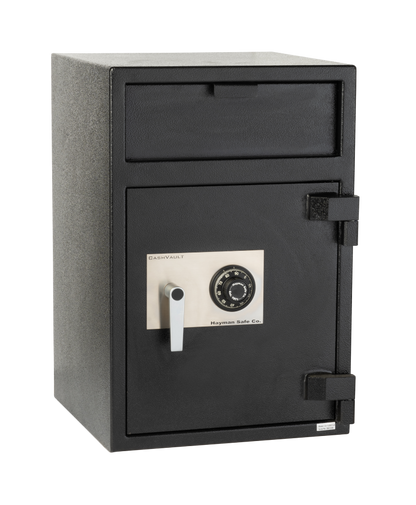

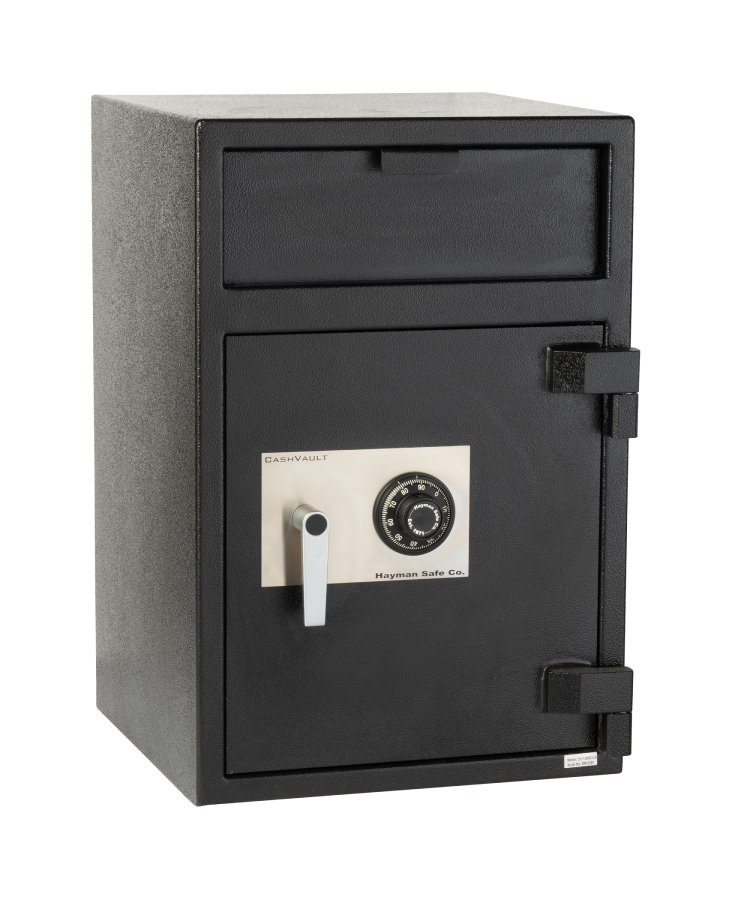

CashVault CV F30W C Front Loading Depository Safe
The CashVault CV F30W C Front Loading Depository Safe offers professional-grade protection and convenience for businesses handling cash deposits throughout the day. With a wide front-loading deposit drawer that accepts bags up to 16 1/8″ wide, users can easily deposit money or documents without unlocking the main door. Built from “B” rated formed steel with a ½″ thick solid steel door, this safe combines robust construction, smooth operation, and reliable locking security—ideal for retail, restaurant, or office use.
Specifications
- Material: “B” rated formed steel body
- Door Thickness: ½″ solid steel plate
- Locking Mechanism: UL-listed combination lock (keypad optional)
- Bolts: Three 1″ diameter active locking bolts
- Protection: Hardplate over lock and relocker
- Deposit Slot: Accepts 3″ H x 16 1/8″ W x 6″ D deposits
- Anti-Fishing Design: Sawtooth “anti-fish” baffle system
- Weight: 195 lbs
- Exterior Dimensions: 30″ (H) x 20″ (W) x 20″ (D)
- Interior Dimensions: 18″ (H) x 19 ½″ (W) x 16 ½″ (D)
- Capacity: 6,200 cubic inches
- Clear Door Opening: 19 1/8″ (H) x 16 ¼″ (W)
- Finish: Black powder-coated exterior
- Shelf: 1 adjustable
Features
-
Wide Front-Loading Deposit Drawer: Accepts larger deposit bags without opening the safe’s main door, streamlining cash handling.
-
High-Security Lock: UL-listed combination lock with optional electronic keypad for added convenience.
-
Rugged Steel Construction: “B” rated formed steel body and ½″ thick solid steel door for superior durability.
-
Advanced Protection System: Hardplate and relocker mechanisms defend against forced entry or drilling attacks.
-
Automatic Bolt Engagement: Spring-loaded detent system ensures secure locking when the door is closed.
-
Heavy-Duty Hinges: Reinforced for long-term reliability and smooth operation.
-
Anti-Fishing Baffle: Sawtooth deposit design prevents retrieval of deposited items.
-

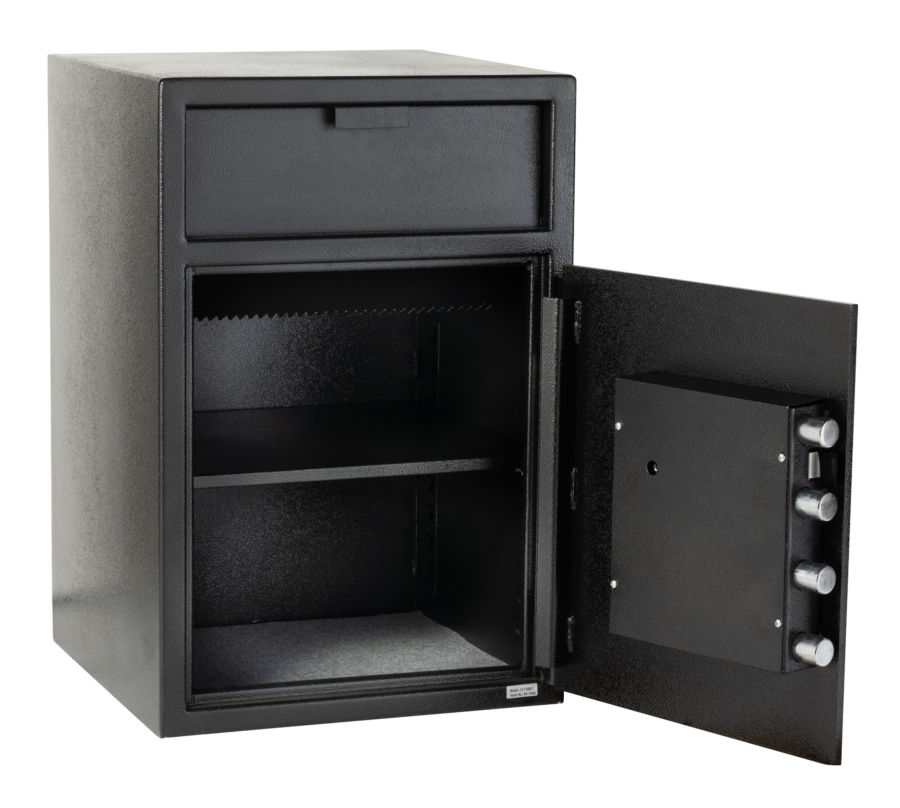

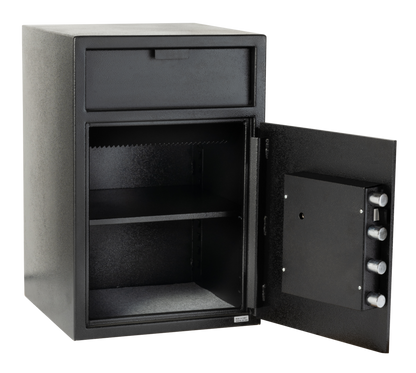

Adjustable Interior Shelf: Customize storage for cash trays, envelopes, and valuables.
-
Anchoring Capability: Four ½″ pre-drilled holes allow floor mounting for added security.
- Professional Finish: Sleek black powder-coated surface resists scratches and maintains a clean appearance.
Maintenance
-
Daily: Wipe exterior with a soft, dry cloth to preserve finish.
-
Monthly: Check bolt engagement and lock functionality.
- Annually: Lubricate hinges and inspect lock performance to ensure smooth operation.
Warranty
-
Parts & Labor: 1 year
- Burglary Guarantee: Lifetime protection against burglary-related damage
