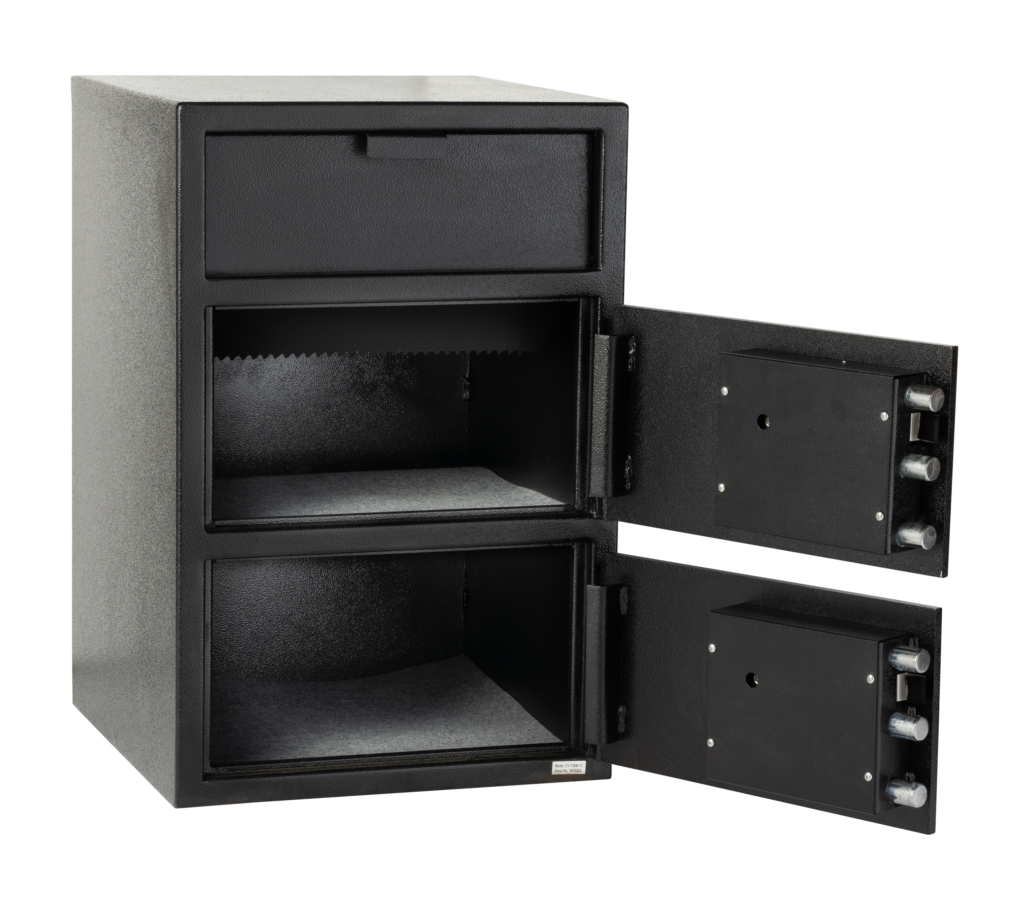

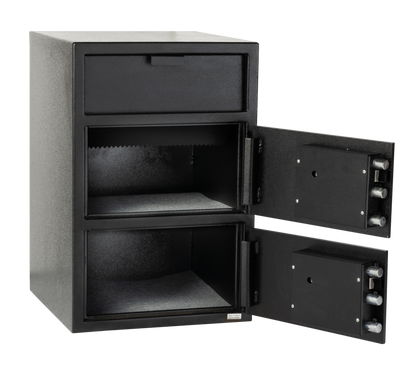

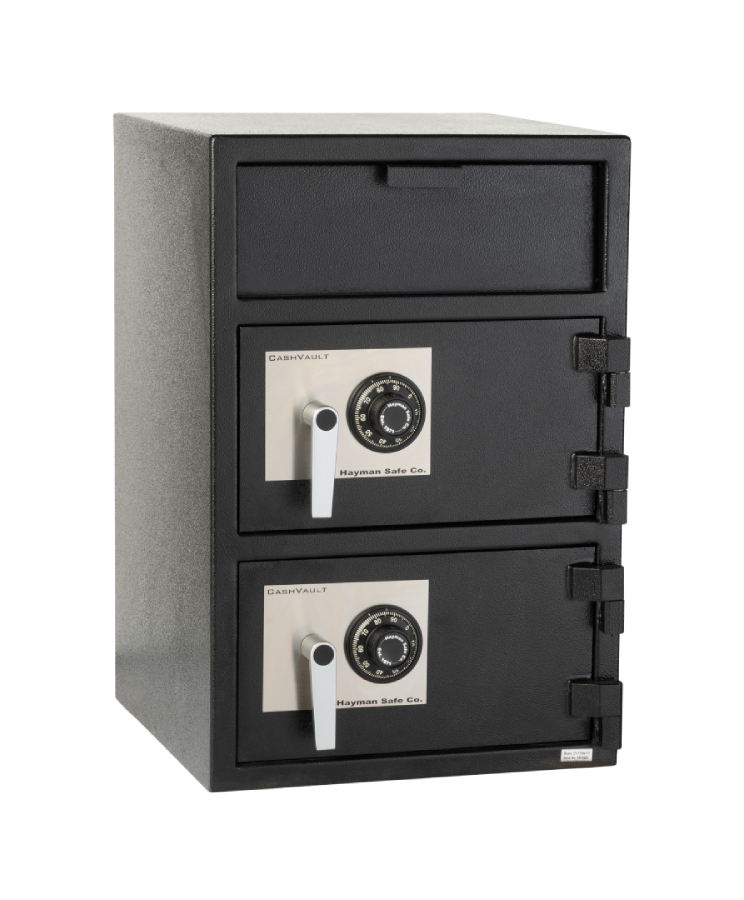

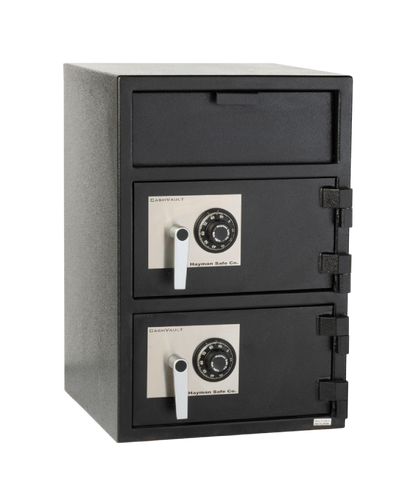

CashVault CV F30W-2 CC Double Door Front Loading Depository Safe
The CashVault CV F30W-2 CC is a double-door front-loading depository safe engineered for businesses requiring organized cash management and secure overnight storage. Designed with two separate compartments — a top depository chamber for quick deposits and a bottom storage compartment for retained valuables — this safe offers exceptional flexibility and security. The front-loading deposit drawer accepts bags up to 16 1/8″ wide, making it perfect for retail, restaurants, and commercial operations handling daily transactions. Built with “B” rated formed steel and a ½″ thick solid steel door, this safe combines strength, functionality, and reliability.
Specifications
- Material: “B” rated formed steel body
- Door Thickness: ½″ solid steel plate
- Locking Mechanism: UL-listed combination lock (keypad optional)
- Bolts: Three 1″ diameter active locking bolts
- Protection: Hardplate over lock and relocker
- Deposit Slot: Accepts 3″ H x 16 1/8″ W x 6″ D deposits
- Anti-Fishing Design: Sawtooth “anti-fish” baffle system
- Weight: 194 lbs
- Exterior Dimensions: 30″ (H) x 20″ (W) x 20″ (D)
- Top Compartment Dimensions: 7 ¼″ (H) x 19 ⅞″ (W) x 16 ⅝″ (D)
- Top Compartment Capacity: 2,395 cubic inches
- Bottom Compartment Dimensions: 10 ⅜″ (H) x 19 ⅞″ (W) x 16 ⅝″ (D)
- Bottom Compartment Capacity: 3,428 cubic inches
- Total Capacity: 5,823 cubic inches
- Clear Door Openings: 13 ⅞″ (H) x 16 ⅜″ (W) (both compartments)
- Finish: Black powder-coated exterior
Features
-
Dual Compartment Design: Separate top depository and bottom storage sections enhance organization and security for daily deposits.
-
Front-Loading Deposit Drawer: Allows quick and easy cash drops without opening the main compartment.
-
High-Security Build: “B” rated steel body and ½″ thick solid door provide strong burglary resistance.
-
Advanced Locking System: UL-listed combination lock with optional electronic keypad upgrade.
-
Relocker & Hardplate Defense: Shields critical lock areas against drilling and forced entry attacks.
-
Spring-Loaded Detent: Automatically extends boltwork when the door closes, ensuring a secure seal.
-
Anti-Fishing Protection: Sawtooth deposit chute prevents unauthorized retrieval of deposited items.
-
Heavy-Duty Hinges: Built to support long-term daily use with smooth operation.
-
Anchoring Capability: Four ½″ pre-drilled holes allow secure floor installation.
-
Professional Finish: Durable black powder coating resists wear and maintains a clean look.
- Best Practice Tip: Move valuables from the top depository to the lower compartment for overnight security.
Maintenance
-
Daily: Clean the surface with a soft cloth to maintain its finish.
-
Monthly: Inspect bolt engagement and lock operation for smoothness.
- Annually: Lubricate hinges and test both compartment locks for consistent performance.
Warranty
-
Parts & Labor: 1 year
- Burglary Guarantee: Lifetime protection against burglary-related damage
