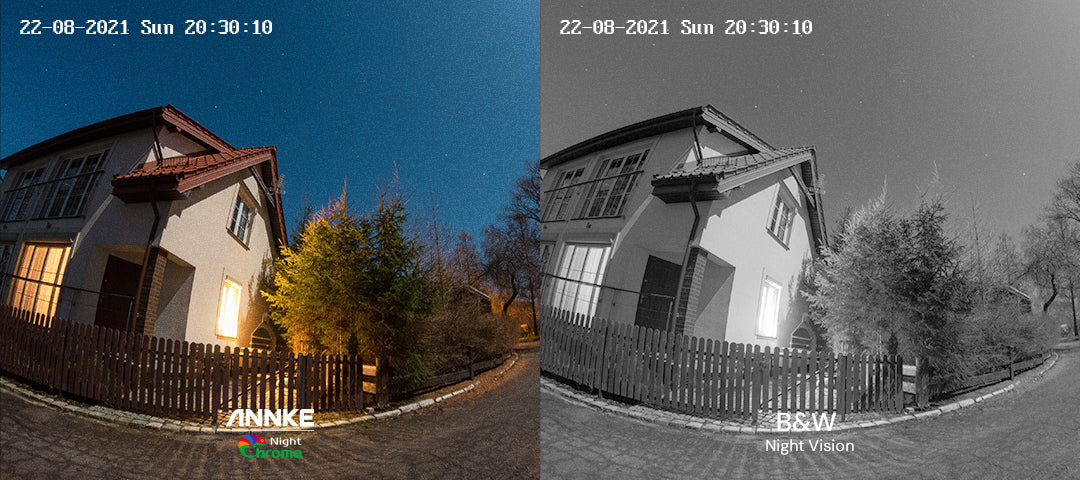

Unique & Unrivaled Tech Behind Acme Color Night Vision
Experience unparalleled 3K QHD color night vision with NightChroma™ NC500. Featuring an f/1.0 super aperture, advanced backside illumination sensor, high-performance ISP, and precise micro-size alignment, it ensures brighter, clearer, and high-fidelity images. Soft supplement light ensures optimal vision in 0 lux conditions.

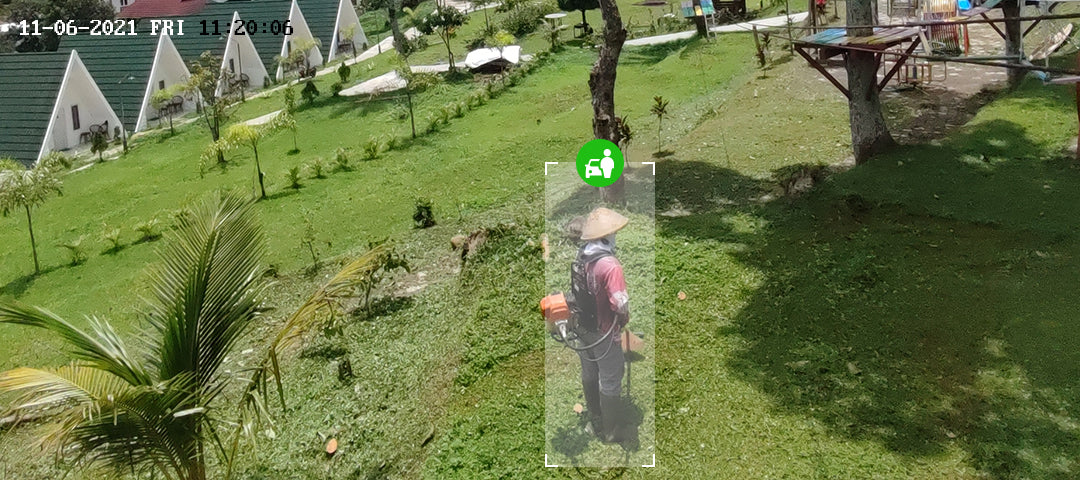

Human & Vehicle Detection, Brings 99% Accurate Alerts
Using an intelligent algorithm based on a deep learning platform, the motion detection 2.0 camera will detect people and vehicle, which helps reduce 99% unwanted motion alerts triggered by animals, or random inanimate objects.
Human & Vehicle Detection, Brings 99% Accurate Alerts
Using an intelligent algorithm based on a deep learning platform, the motion detection 2.0 camera will detect people and vehicle, which helps reduce 99% unwanted motion alerts triggered by animals, or random inanimate objects.
Industry-Leading H.265+ Video Format
H.265+ video compression tech consumes less bandwidth & storage space than H.264, without losing 3K QHD quality. Quadruple H.265+/H.265/H.264+/H.264 video format allows for maximum encryptions and backward compatibility with legacy platforms.
Built to Brave Extreme Hot & Cold Climates
Rated as IP67, this weatherproof camera can withstand pretty much anything, regardless heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-22 °F to 140 °F), ensuring all-year-round protection wherever you live.
Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.
Metal
Rugged Housing
140 °F | 60 °C
Hot Rating
-22 °F | -30 °C
Cold Rating
IP67
Water Rating
Small on Prices, Big on Features
-
Local Storage
Supports up to 256 GB TF card (not included) for local video storage without monthly cloud fees.
-
Image Enhancement
20 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 3K Super HD clarity.
-
Unlimited Remote Access
Easily access your system via intuitive ANNKE Vision App from virtually anywhere in the world.
-
PoE or DC Power
Power on the camera via PoE or plug the camera to an outlet for power supply.
Specifications
-
What's in the Box➀ NC500 Security Camera(s) ((The quantity varies based on your choice.))➁ 1X Mounting Screw Bag➂ 1X User ManualCamera
Image Sensor1/3" Progressive Scan CMOS Video Bitrate32 Kbps - 8 Mbps Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio InputBuilt-in Microphone, record with audio Lens2.8 mm@F1.0 Day & Night24/7 color imaging Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light Angle of ViewHorizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEGSupplement Light TypeWhite Light Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection Image EnhancementBLC, HLC, 3D DNR ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface(Profile S, Profile T, Profile G), ISAPI Wide Dynamic Range120 dB WDR Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks General FunctionRotate mode, mirror, password protection, remote access GeneralEthernet1 RJ45 10 M/100 M self-adaptive Ethernet port HousingMetal & Plastic ColorWhite Hardware ResetYes StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67 Dimension (L X W X H)Ø109.9 mm × 103.6 mm (Ø4.3" × 4.1")-I81HE/ Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5")-I81HD WeightApprox. 420 g (0.9 lb.)-I81HE / Approx. 430 g (0.9 lb.)-I81HD
