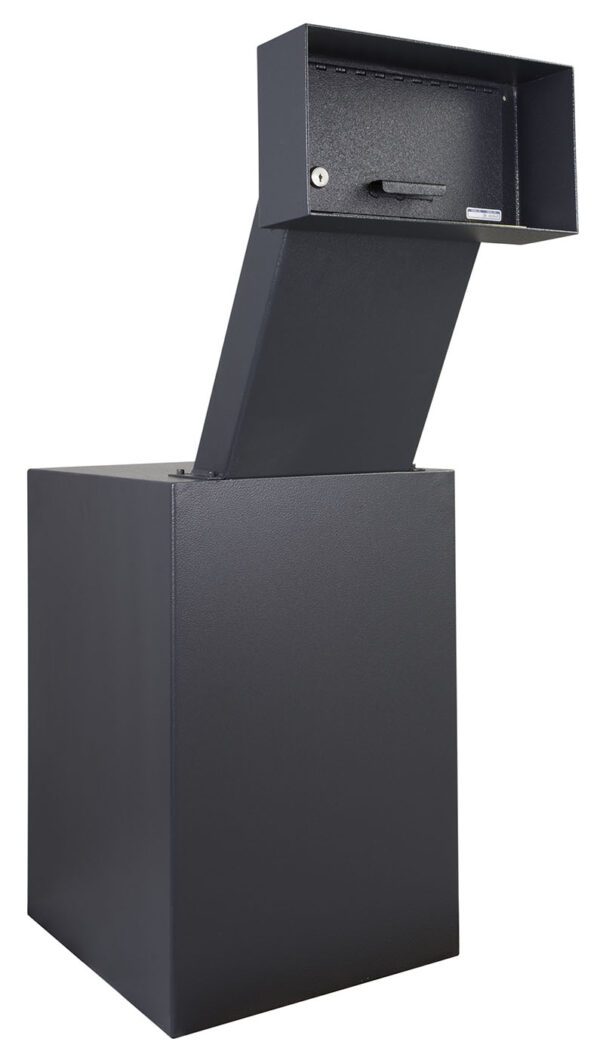

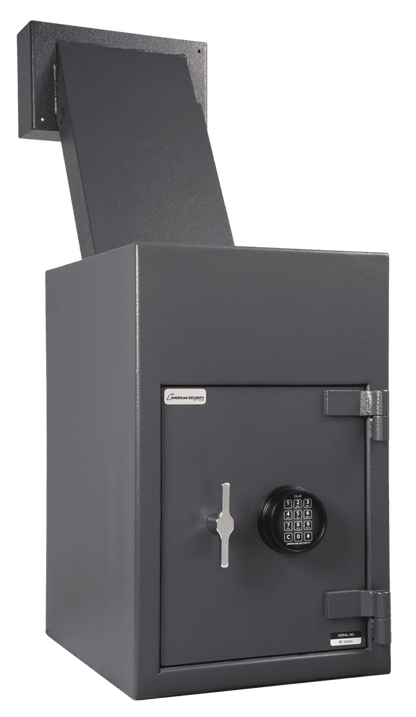

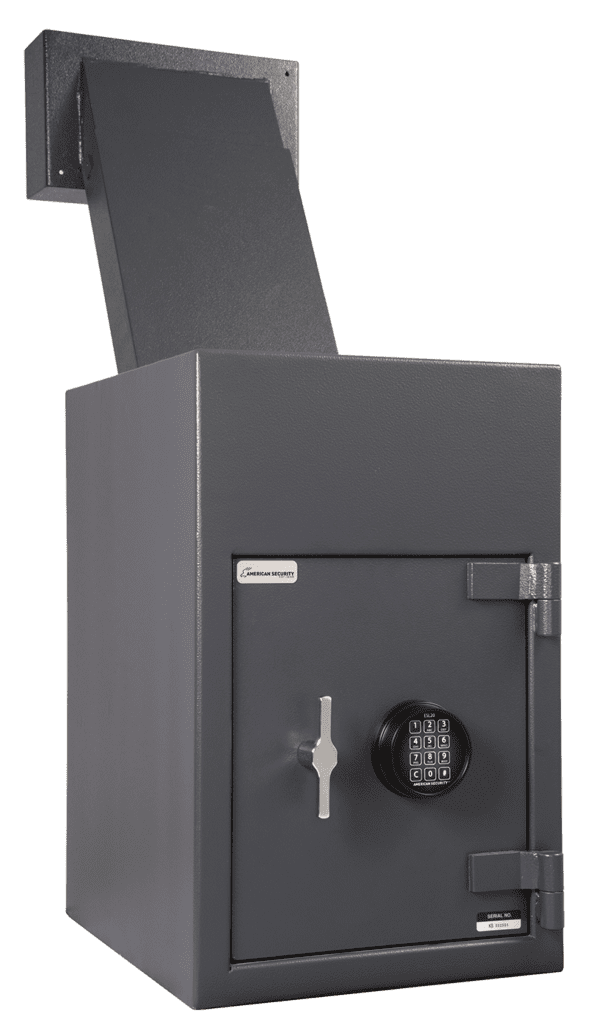

AmSec DSR2516 B-Rate Depository Safe with Hopper
The AmSec DSR2516 Depository Safe is built for businesses that need secure, fast, and efficient cash handling in high-volume retail environments. With its B-Rate construction, thru-the-wall adjustable hopper, and advanced electronic lock, this safe delivers outstanding protection while maintaining easy deposit access.
Designed to prevent internal theft and external attacks, the DSR2516 features a solid steel plate body, reinforced receiving locker, anti-fish baffles, and a high-security ESL20XL U.L. Type 1 electronic lock with time delay and multi-user capability. Its compact design allows it to fit into tight areas, making it ideal for retail stores, restaurants, service stations, and cash-intensive operations.
Specifications
Material:
-
Body: 0.125″ solid steel plate
-
Door: 0.5″ solid steel plate
-
Receiving Locker: 0.25″ solid steel plate
Dimensions (External): 25″ (H) × 16″ (W) × 20″ (D)
Dimensions (Internal): 24.75″ (H) × 15.75″ (W) × 17″ (D)
Weight: 260 lbs
Color: Black textured finish (standard)
Lock: ESL20XL U.L. Type 1 High Security electronic lock
Features
- High-Security Door System: 0.5″ solid steel plate door reinforced with three 1″ locking bolts, auxiliary relock device, large carburized hardplate, and auto bolt detent.
- Advanced Electronic Lock: ESL20XL high-security digital lock with time delay, multiple users, dual-control mode, and armored-car override.
- Thru-the-Wall Reverse Hopper: Adjustable chute, fits large package sizes (4″D × 2.5″W × 9.5″L), protected by dual anti-fish baffles to prevent theft.

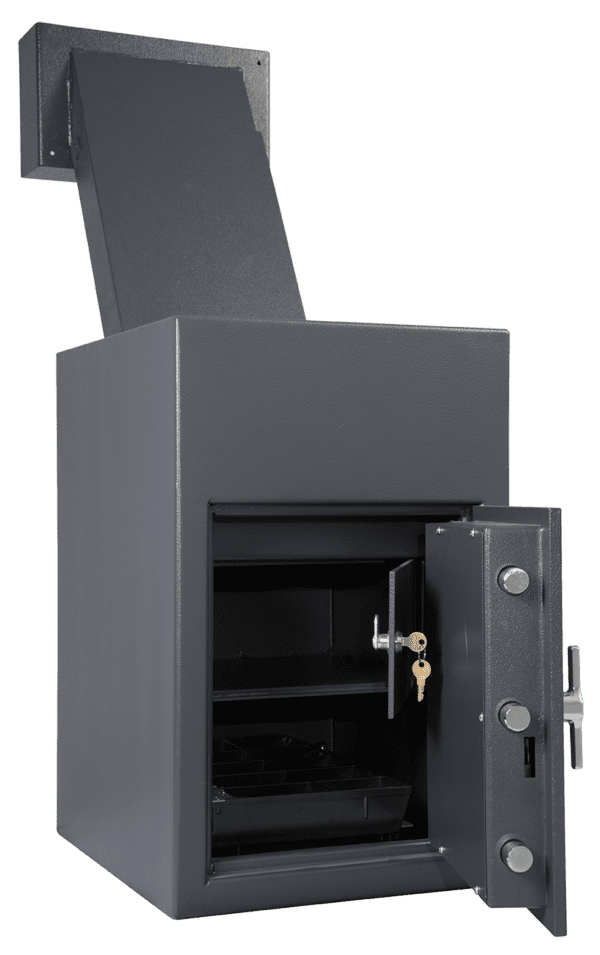

Dual Storage Areas:
Receiving Locker:
- Inside: 5.875″H × 15.75″W × 13.75″D
- Cubic Capacity: 1272 cu/in
- Built with 0.25″ solid steel
Till Storage Compartment:
- Holds up to 4 till trays
- Inside: 9″H × 15.75″W × 17″D
- Cubic Capacity: 2410 cu/in
Efficient Installation: Adjustable chute fits wall thicknesses from 6.875″ to 13.875″, designed for floor height 36.75″ to 48.75″.
Compact Footprint: Perfect for businesses with limited space yet requiring robust security.
Maintenance
-
Daily: Inspect hopper for obstructions and ensure chute moves smoothly.
-
Monthly: Check lock function, clean keypad, and test bolt engagement.
- Annually: Inspect receiving locker, hinges, and internal hardplate for any wear.
Warranty
-
Frame & Structure: Protected under the manufacturer’s structural warranty.
- Electronic Lock: Covered under warranty for performance and defects.
