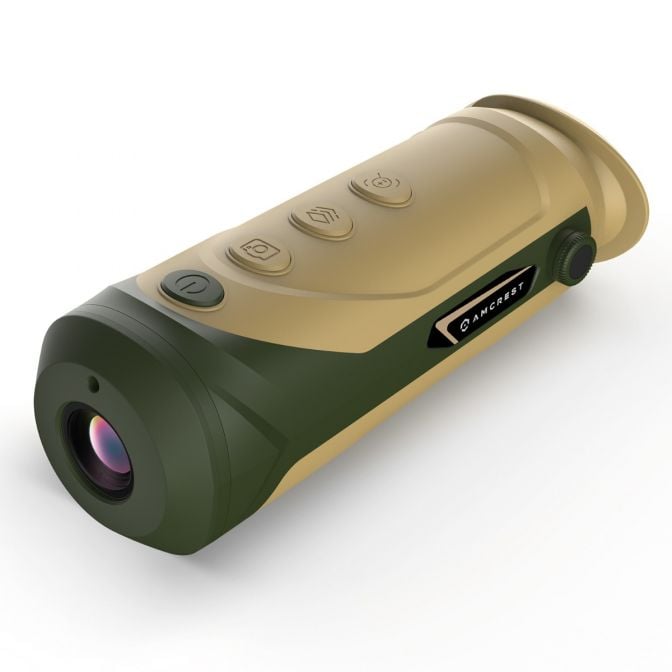

AMCREST MODEL: TA10-256
THERMAL IMAGING MONOCULAR FEATURES:
- Detector Type: Vanadium Oxide Uncooled Focal Plane Detector
- Resolution: 256 x 192, 49152 pixels.
- Pixel Pitch: 12 μm
- Spectral Range: 8μm - 14μm
- Thermal Sensitivity (NETD)
- Focal Length 7.5 mm
- Field of View H: 24.0°; V: 18.0° Field of View
- Close Focus Distance 3.28ft (1m)
- DRI Detection Distance
- Detection - Vehicle: 2,549.21ft, Human: 954.72ft
- Recognition - Vehicle: 6365.48ft, Human: 246.06ft
- Identification - Vehicle: 318.24ft, Human: 121.39ft
- 4X Digital Zoom

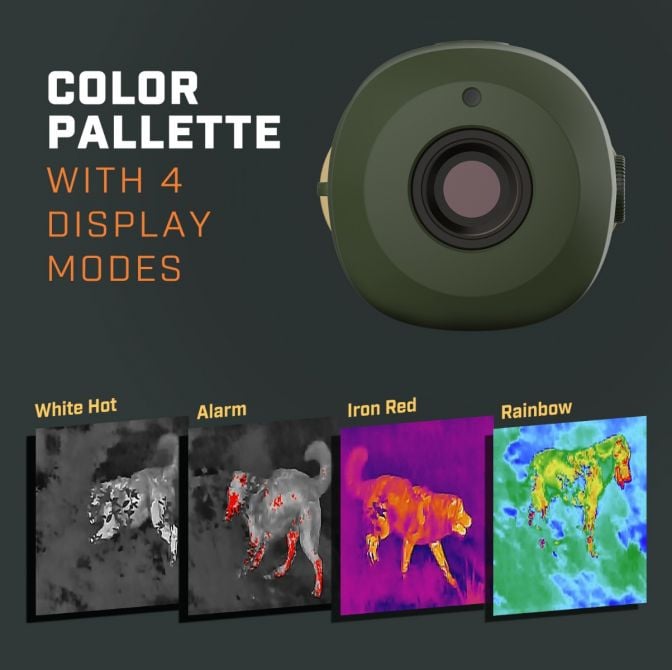

- Color Palettes: 4 (White Hot; Alarm; Rainbow; Iron Red)
- H.265 Video Compression
- 50Hz Frame Rate
- Display Screen Dimensions 0.2 inches
- Display Resolution: 720x540
- Supports up to 256GB MircroSD Card (Not Included; Sold Separately)

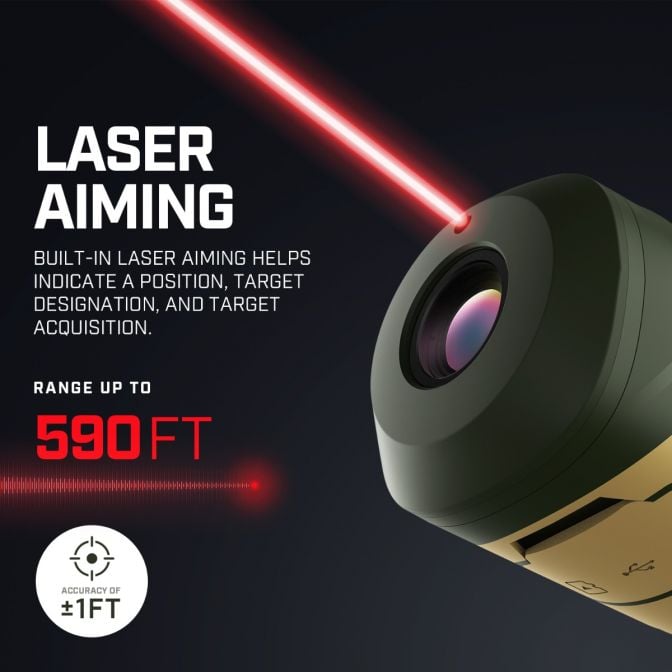

- Laser Aiming 590.55ft (180m), Class 2 (IEC 60825-1)
- Built in Buzzer
- Fire Detection Supported
- Cold/Hot Spot Trace Supported
- 1 x CVBS output
- MicroUSB Output
- <1.5W Power Consumption
- Battery Life >9hours
- Charging Time <3hours
- Operating Temperature: –4 °F to +131 °F (–20 °C to +55 °C)
- Operating Humidity ≤90%
- IP67 Weatherproof

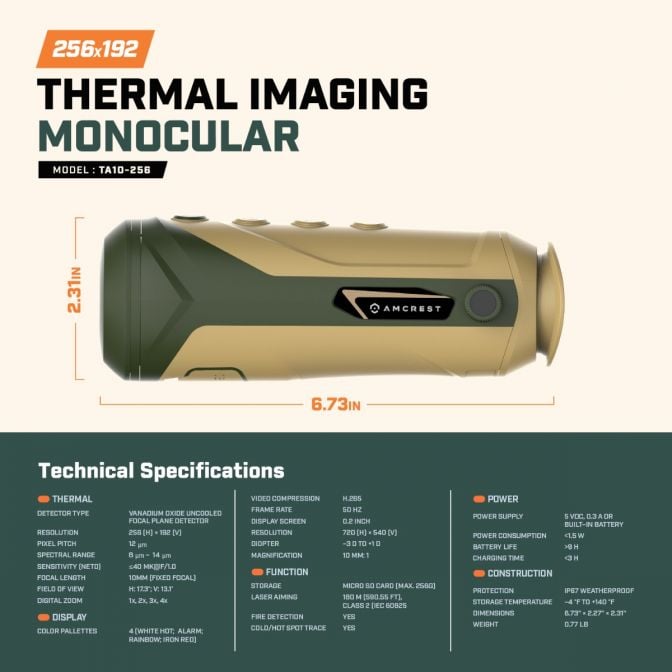

- Dimensions: 6.73” x 2.27” x 2.31” inches
- Weight: 0.77lbs (350g)
- Drop Test Height: 6.56ft (2m)
