- 8 PoE+ Ports
-
2 Gigabit Ethernet Uplink
-
30W Per PoE Port
- Power Management
Power over Ethernet

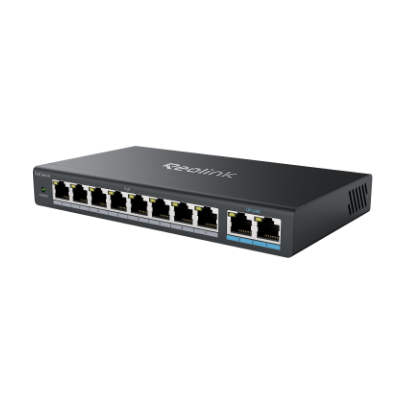

Reolink RLA-PS1 provides a reliable PoE solution featuring 8 PoE+ ports (10/100Mbps) and 2 Gigabit Ethernet uplink ports (10/100/1000Mbps). Compliant with IEEE802.3af/at standard, it can deliver up to 30W for each PoE port and has a total power budget of 120W for at most 8 PoE devices.
IEEE802.3af/at
Standard
30W
Max. Output Power Per Port
120W
Max. Total Output Power
Multiple Protection Mechanisms
Description
Power Management
This PoE switch features a power management mechanism, so when the total allocated power exceeds the power budget (120W), the PoE ports will be powered off one by one starting from Port 8 until the total power is below the threshold that the PoE switch is capable of supplying.
Auto Detection of Adaptive Devices
Reolink RLA-PS1 will automatically detect whether the device connected to its ports is a PoE device and whether it needs to be powered. To avoid damage, it will not supply power to non-PoE devices.
4KV Surge Protection
Applying professional lightning protection, this PoE switch will effectively prevent the power of lightning strikes from damaging connected devices and ensure their long-term service.
Plug & Play
Reolink RLA-PS1 works perfectly with your PoE cameras and transfers both data and electric power, with only one Ethernet cable required. Easy to set up, even for beginners. Designed to meet your diverse needs, it can be directly connected to your NVR for higher reliability and security, or it can be connected to the same LAN as your product to support more features of your cameras.
